Aluminum 5052
Aluminum 5052 alloy is a non-heat-treatable alloy with good corrosion resistance, especially to brine. The following data table will provide more detailed information on aluminum 5052 alloy.
TOP
Chemical Composition
Element | Content(%) |
Aluminum, Al | 95.7 – 97.7 |
Manganese, Mn | 2.2 – 2.8 |
Iron, Fe | ≤ 0.4 |
Silicon, Si | ≤ 0.25 |
Chromium, Cr | 0.15 – 0.35 |
Zinc, Zn | ≤ 0.10 |
Copper, Cu | ≤ 0.10 |
Physical Properties
Properties | Metric | English |
Density | 2.68 g/cc | 0.0968 lb/in³ |
Melting Point | 607 – 649 °C | 1125 – 1200 °F |
Mechanical Properties
Properties | Metric | English |
Hardness, Brinell | 60 | 60 |
Hardness, Knoop | 83 | 83 |
Hardness, Vickers | 68 | 68 |
Ultimate Tensile Strength | 228 MPa | 33000 psi |
Tensile Yield Strength | 193 MPa | 28000 psi |
Elongation at Break | 12% | 12% |
Modulus of Elasticity | 70.3 GPa | 10200 ksi |
Poisson’s Ratio/td> | 0.33 | 0.33 |
Fatigue Strength | 117 MPa | 17000 psi |
Shear Modulus | 25.9 GPa | 3760 ksi |
Shear Strength | 138 MPa | 20000 psi |
Thermal Properties
Properties | Metric | English |
Specific Heat Capacity | 0.88 J/g-°C | 0.21 BTU/lb-°F |
Thermal Conductivity | 138 W/m-K | 960 BTU-in/hr-ft²-°F |
Applications
Aluminum 5052 is used in the following application areas:
· Milk crates

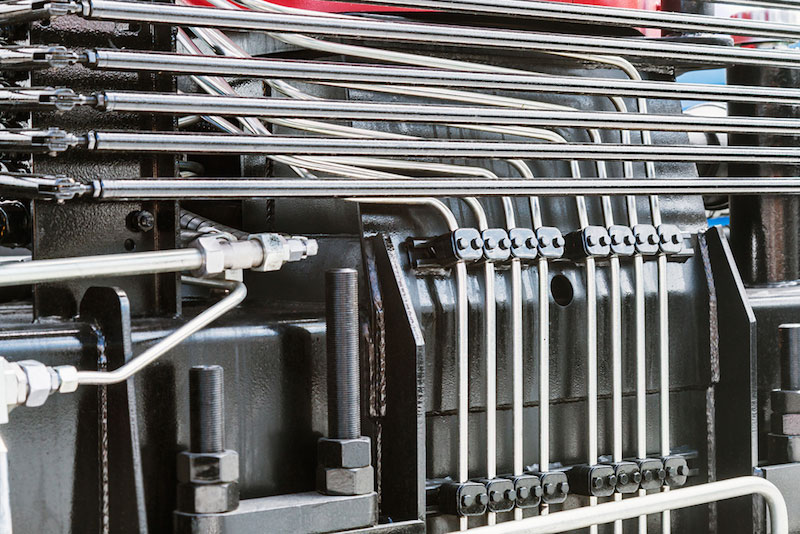

· Hydraulic tubes
· Appliances
· Kitchen cabinets
· Small boats home freezers
· Aircraft tube
· Fencing
